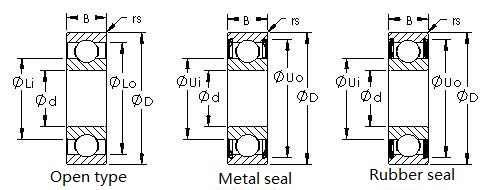

Drawing

Metric Deep Groove Ball Bearings

PDF

Product Information

The basic structure of a deep groove ball bearing consists of an outer ring, inner ring, steel balls, and a cage. Its raceway is a deep, continuous, curved groove, which gives it the following outstanding characteristics:

Versatile versatility

High speed capability

Low frictional torque and high efficiency

Simple structure and low manufacturing cost

Low noise and low vibration

Main application areas：

Deep groove ball bearings are ubiquitous, covering almost all industrial fields and everyday appliances:

Electric motors/generators: Standard configuration for small and medium-sized motors.

Automotive: Auxiliary components other than the wheel hub (such as generators, tensioners, gearboxes).

Home appliances: Air conditioners, washing machines, vacuum cleaners, fans, etc.

General machinery: Gearboxes, pulleys, pumps, agricultural implements.

Office equipment and precision instruments: Computer hard drives, optical drives, small measuring instruments.

Inquiry	Bearing Number	Dimensions			Chamfer(min)	Basic Load Rating		Limiting Speed (X1000 RPM)		Weight(Kg)
Inquiry	Bearing Number	d	D	B	(rs)	Cr(N)	Cor(N)	Grease	Oil	Weight(Kg)
	6000	10mm	26mm	8mm	0.3	4550	1950	31	36	19
	6000 2RS	10mm	26mm	8mm	0.3	4550	1950	31	36	19
	6000zz	10mm	26mm	8mm	0.3	4550	1950	31	36	19
	6200	10mm	30mm	9mm	0.6	5100	2400	24	29	32
	6200 2RS	10mm	30mm	9mm	0.6	5100	2400	24	29	32
	6200zz	10mm	30mm	9mm	0.6	5100	2400	24	29	32
	6300	10mm	35mm	11mm	0.6	8100	3450	22	27	53
	6300 2RS	10mm	35mm	11mm	0.6	8100	3450	22	27	53
	6300zz	10mm	35mm	11mm	0.6	8100	3450	22	27	53
	6001	12mm	28mm	8mm	0.3	5100	2400	27	32	22
	6001 2RS	12mm	28mm	8mm	0.3	5100	2400	27	32	22
	6001zz	12mm	28mm	8mm	0.3	5100	2400	27	32	22
	6201	12mm	32mm	10mm	0.6	6800	3050	22	27	37
	6201 2RS	12mm	32mm	10mm	0.6	6800	3050	22	27	37
	6201zz	12mm	32mm	10mm	0.6	6800	3050	22	27	37
	6301	12mm	37mm	12mm	1	9700	4200	20	25	60
	6301 2RS	12mm	37mm	12mm	1	9700	4200	20	25	60
	6301zz	12mm	37mm	12mm	1	9700	4200	20	25	60
	6002	15mm	32mm	9mm	0.3	5600	2850	23	27	30
	6002 2RS	15mm	32mm	9mm	0.3	5600	2850	23	27	30
	6002zz	15mm	32mm	9mm	0.3	8100	3450	23	27	30
	6202	15mm	35mm	11mm	0.6	7650	3750	20	24	45
	6202 2RS	15mm	35mm	11mm	0.6	7650	3750	20	24	45
	6202zz	15mm	35mm	11mm	0.6	7650	3750	20	24	45
	6302	15mm	42mm	13mm	1	11400	5450	17	20	82
	6302 2RS	15mm	42mm	13mm	1	11400	5450	17	20	82
	6302zz	15mm	42mm	13mm	1	11400	5450	17	20	82
	6003	17mm	35mm	10mm	0.3	6000	3250	21	25	39
	6003 2RS	17mm	35mm	10mm	0.3	6000	3250	21	25	39
	6003zz	17mm	35mm	10mm	0.3	6000	3250	21	25	39
