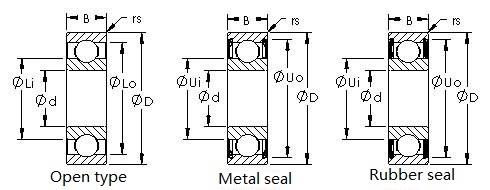

Drawing

Inch Deep Groove Ball bearings R Series

PDF

Product Information

The basic structure of a deep groove ball bearing consists of an outer ring, inner ring, steel balls, and a cage. Its raceway is a deep, continuous, curved groove, which gives it the following outstanding characteristics:

Versatile versatility

High speed capability

Low frictional torque and high efficiency

Simple structure and low manufacturing cost

Low noise and low vibration

Main application areas：

Deep groove ball bearings are ubiquitous, covering almost all industrial fields and everyday appliances:

Electric motors/generators: Standard configuration for small and medium-sized motors.

Automotive: Auxiliary components other than the wheel hub (such as generators, tensioners, gearboxes).

Home appliances: Air conditioners, washing machines, vacuum cleaners, fans, etc.

General machinery: Gearboxes, pulleys, pumps, agricultural implements.

Office equipment and precision instruments: Computer hard drives, optical drives, small measuring instruments.

Inquiry	Bearing Number	Dimensions			Basic Load Rating		Limiting Speed (X1000 RPM)		Weight(Kg)
Inquiry	Bearing Number	d	D	B	Cr(N)	Cor(N)	Grease	Oil	Weight(Kg)
	R8	12.7 mm	28.575 mm	6.35 mm	1149	511	27	32	11.6
	R8 2rs	12.7 mm	28.575 mm	7.938 mm	1149	511	27	32	24.1
	R8zz	12.7 mm	28.575 mm	7.938 mm	1149	511	27	32	24.1
	R10	15.875 mm	34.925 mm	7.142 mm	1585	735	21	25	23.5
	R10 2rs	15.875 mm	34.925 mm	8.733 mm	1585	735	21	25	38.1
	R10zz	15.875 mm	34.925 mm	8.733 mm	1585	735	21	25	38.1
	R12	19.05 mm	41.275 mm	7.938 mm	2477	1177	17	21	53.1
	R12 2rs	19.05 mm	41.275 mm	11.113 mm	2477	1177	17	21	69.3
	R12zz	19.05 mm	41.275 mm	11.113 mm	2477	1177	17	21	69.3
	R14	22.225 mm	47.625 mm	9.525 mm	2658	1307	10	12	78
	R14 2rs	22.225 mm	47.625 mm	12.7 mm	2658	1307	10	12	78
	R14zz	22.225 mm	47.625 mm	12.7 mm	2658	1307	10	12	78
	R16	25.4 mm	50.8 mm	9.525 mm	2652	1307	9	11	87
	R16 2rs	25.4 mm	50.8 mm	12.7 mm	2652	1307	9	11	87
	R16zz	25.4 mm	50.8 mm	12.7 mm	2652	1307	9	11	87
	R18	28.575 mm	53.975 mm	9.525 mm	3492	1817	8	10	91
	R18 2rs	28.575 mm	53.975 mm	12.7 mm	3492	1817	8	10	91
	R18zz	28.575 mm	53.975 mm	12.7 mm	3492	1817	8	10	91
	R20	31.75 mm	57.15 mm	9.525 mm	3695	1986	7	9	102
	R20 2rs	31.75 mm	57.15 mm	12.7 mm	3695	1986	7	9	102
	R20zz	31.75 mm	57.15 mm	12.7 mm	3695	1986	7	9	102
	R22	34.925 mm	63.5 mm	11.113 mm	4067	2247	7	8	105
	R22 2rs	34.925 mm	63.5 mm	14.288 mm	4067	2247	7	8	105
	R22zz	34.925 mm	63.5 mm	14.288 mm	4067	2247	7	8	105
	R24	38.1 mm	66.675 mm	11.113 mm	4426	2446	5	6	140
	R24 2rs	38.1 mm	66.675 mm	14.288 mm	4426	2446	5	6	140
	R24zz	38.1 mm	66.675 mm	14.288 mm	4426	2446	5	6	140
